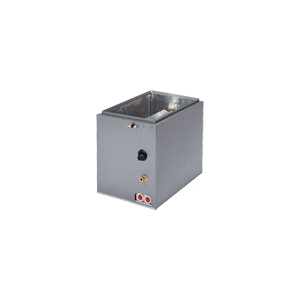

Armstrong Air® EC1P23BL

When you add a matching evaporator coil to your system, you get complete home comfort, peak performance and maximized efficiency.

Armstrong Air® Evaporator Coil, Traditional, Series: EC1P-1, 2 ton Nominal Capacity, 600 to 1200 cfm, Upflow/Downflow, R-22/R-410A, Piston Expansion Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Cased, Light Gray, 19-1/2 in L x 24 in W x 21 in H

• Microban® protection - drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
• Matched system: Our evaporator coils are specially designed and sized to match Armstrong Air® heating and cooling products, removable cabinets and a single drain pan offer quick access and easy clean up for lifelong performance efficiencies, plus, when you add a matching coil, you get a system that runs at peak performance while maximizing efficiency
• MHT™ technology - Armstrong Air® coils feature rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air for maximum heat transfer and efficiency
• External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
• Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections

• Armstrong Air 19114 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Armstrong_Air_19114_Specification_Sheet.pdf
