| Compressor Type | : | Scroll |
| Dimensions | : | 43-1/4 in H x 32-1/4 in W x 32-1/4 in D |
| Discharge Line Size | : | 3/8 in |
| Drive Type | : | Direct |
| Flow Rate | : | 4060 cfm |
| HSPF Rating | : | 8.2 |
| Material | : | Steel |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 825 rpm |
| Nominal Capacity | : | 5 ton |
| Power Source | : | 208/230 V, 1 pH, 60 Hz |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 17 |
| Series | : | A7HP14F |
| Sound Level | : | 79 dBA |
| Suction Line Size | : | 1-1/8 in |
| System Type | : | Outdoor Unit |
| Type | : | Single-Stage |

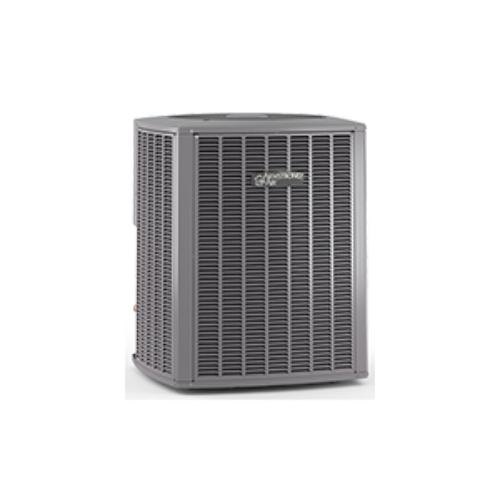

Armstrong Air®, 25M58, Heat Pump Split System, Single-Stage, Series: A7HP14F, 5 ton Nominal, 208/230 V, 1 pH, 60 Hz Power Source, 4060 cfm Flow Rate, 17 SEER, 8.2 HSPF, Scroll Compressor, R-454B Refrigerant, 1-1/8 in Suction Line, 3/8 in Discharge Line, 1/3 hp Motor, 825 rpm, Direct Drive, 79 dBA Sound Level, Steel, 43-1/4 in H x 32-1/4 in W x 32-1/4 in D Dimensions
- Outdoor Coil Fan
- Vertical air discharge
- High Pressure Switch
- High-Capacity Liquid Line Drier
- Compressor Sound Dampening System
- Expansion Valve - Outdoor Unit
- Four-Way Reversing Valve
- Defrost Control
