Armstrong Air® 4SCU16LS160P

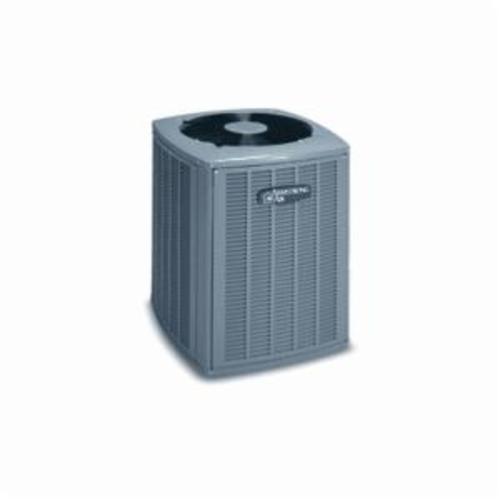

Armstrong Air® 4SCU16LS160P Louvered Two Stage Split System Air Conditioner, 5 ton Cooling, 208/230 VAC, 35.6 A, 1 ph, 60 Hz, 16 SEER

Manufacturer: Allied Air Enterprises
Brand Name: Armstrong Air®
Part#: 4SCU16LS160P
MPN: 4SCU16LS160P
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Dimensions      :      35-3/4 in W x 37-3/4 in D x 43-3/4 in H
Discharge Line Size      :      3/8 in
Fuse Size      :      60 A
Material      :      Steel
Motor HP      :      1/4 hp
Motor RPM      :      825 rpm
Mounting Type      :      Corner
Nominal Capacity      :      5 ton
Power Source      :      208/230 VAC, 35.6 A, 1 ph, 60 Hz
Refrigerant Type      :      R-410A
SEER Rating      :      16
Series      :      4SCU16LS
Sound Level      :      76 dBA
Suction Line Size      :      1-1/8 in
Temperature Rating      :      125 deg F
Type      :      Louvered Two Stage

The Armstrong Air® 4SCU16LS is all about giving you greater control. Unlike single-capacity air conditioners, the 4SCU16LS can adjust its cooling output to two different levels, allowing it to adapt to changing temperature and humidity levels with greater precision. Different levels of cooling mean the 4SCU16LS will not only maintain the exact temperature you set, it can also remove humidity steadily throughout the day. So your indoor environment is exactly the way you want it, without wasting energy.

Armstrong Air® Split System Air Conditioner, Louvered Two Stage, Series: 4SCU16LS, 5 ton Nominal, 16 SEER, 208/230 VAC, 35.6 A, 1 ph, 60 Hz Power Source, 60 A Fuse, R-410A Refrigerant, 125 deg F, 76 dBA Sound Level, 1-1/8 in Suction Line, 3/8 in Discharge Line, 1/4 hp Motor, 825 rpm, Corner Mounting, Steel, 35-3/4 in W x 37-3/4 in D x 43-3/4 in H Dimensions

  • High-efficiency 2 stage Copeland UltraTech™ scroll compressor
  • Internally protected against high temperature motor overload conditions
  • Four metal louvered panels easily removable for coil cleaning and service
  • Corner-mounted controls for easy service
  • Rounded corner posts for safety and attractive appearance
  • Baked polyester paint finished over galvanized steel for maximum durability
  • Removable PVC coated wire fan discharge grill
  • External gauge ports for easy service
  • Enhanced tube-and-fin coil design featuring MHT™ Technology
  • Raised coil prevents debris from impeding airflow
  • Communicating capable control board works with "Comfort Sync" thermostat (or conventional thermostat)
  • Self diagnostics control board for quick trouble shooting; saves up to 10 fault codes regardless of power interrupt
  • Factory installed crankcase heater, high and low pressure switches and TXV for excellent refrigeration control
  • Thread-on type pressure switches with valve core for quick service
  • Service valves mounted for easy brazing and service
  • Fan orifice for sound reduction and efficient performance
  • Charged for 15 ft of line set
  • Can be matched with Comfort Sync™ enabled or conventional indoor unit
