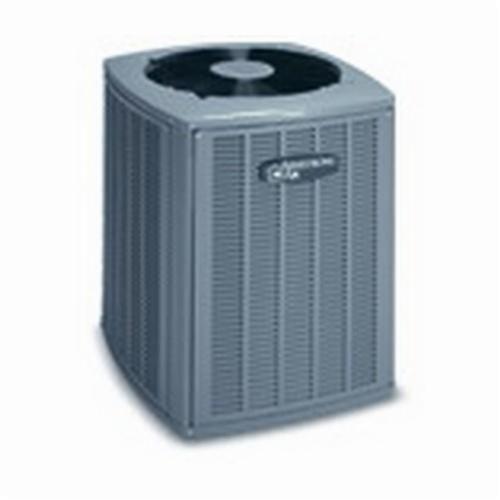

Armstrong Air® 4SCU14LB148P-50
Armstrong Air® 4SCU14LB148P 4SCU14LB Louvered Enhanced Split System Air Conditioner, 4 ton Nominal, Power Source: 208/230 VAC, 26.6 A, 1 ph, 60 Hz, 14 SEER
| Color | : | Baked Polyester Paint |
| Control Type | : | Piston |
| Cooling Capacity | : | 48000 Btu/hr |
| Dimensions | : | 29.38 in W x 31.25 in D x 33.75 in H |
| Discharge Line Size | : | 3/8 in |
| EER Rating | : | 12 |
| Flow Rate | : | 1600 cfm |
| Fuse Size | : | 45 A |
| Material | : | Steel |
| Motor HP | : | 1/4 hp |
| Motor RPM | : | 825 rpm |
| Motor Type | : | Fan |
| Mounting Type | : | Grommet |
| Nominal Capacity | : | 4 ton |
| Power Source | : | 208/230 VAC, 26.6 A, 1 ph, 60 Hz |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | 4SCU14LB |
| Sound Level | : | 80 dBA |
| Suction Line Size | : | 7/8 in |
| Temperature Rating | : | 125 deg F |
Inside the 4SCU14LB youll find a unique blend of advanced technology that delivers consistent performance through the hottest summers. It has been carefully designed by HVAC experts, and built by people who take genuine pride in their work. So, naturally, the professionals who know air conditioning continue to recommend the 4SCU14LB to their customers who want more.
Armstrong Air®, 4SCU14LB148P, Split System Air Conditioner, Louvered Enhanced, Series: 4SCU14LB, 4 ton Nominal, 48000 Btu/hr Cooling, 12 EER, 14 SEER, 208/230 VAC, 26.6 A, 1 ph, 60 Hz Power Source, 45 A Fuse, 1600 cfm Flow Rate, Piston Control, R-410A Refrigerant, 125 deg F, 80 dBA Sound Level, 7/8 in Suction Line, 3/8 in Discharge Line, Fan Motor, 1/4 hp Motor, 825 rpm, Grommet Mounting, Steel, Baked Polyester Paint, 29.38 in W x 31.25 in D x 33.75 in H Dimensions
- Split condensing unit
- Standard model
- Enhanced aluminum fins and copper tubing for high efficiency and capacity
- Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
- High efficiency scroll compressor
- Grommet-mounted compressor for quiet operation
- Protected against high temperature motor overload conditions
- Full metal louvered panel coil guard protection that is easily removed for coil cleaning
- Controls located in corner for easy installation and service
- Rounded corners for safety and attractive, clean appearance
- Baked polyester paint finished over galvanized steel for maximum durability
- PVC coated wire fan discharge grille
- External gauge ports for easy service
- ENERGY STAR® certified - the ENERGY STAR® program is a joint program of the U.S. environmental protection agency and the U.S. department of energy helping us all save money and protect the environment through energy-efficient products and practices
- Up to 16 SEER efficiency - SEER seasonal energy efficiency ratio rates the energy efficiency of your cooling equipment
- The higher the SEER rating, the more efficiently your unit operates, saving you money on utility bills
- MHT™ Technology - Armstrong Air®s proprietary heat transfer system, a specially designed fan shroud pulls air evenly throughout the air conditioners coil surface
- The coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air, all combine for maximum heat transfer and efficiency
- Matched indoor system - when properly matched with a variable speed furnace or air handler, your outdoor unit can, in many cases, provide an elevated SEER rating
- Anti-microbial protection - on matched Armstrong Air® indoor coil, drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells
