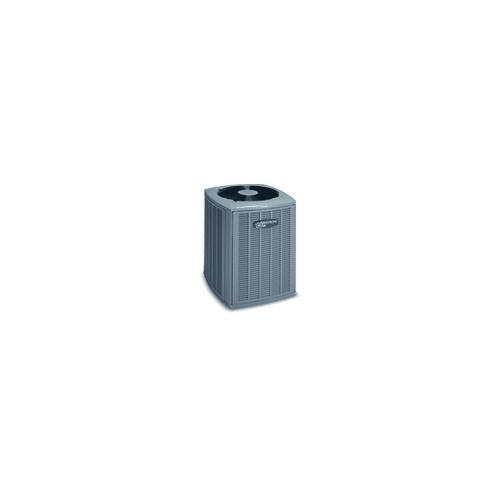

Armstrong Air® 4SCU14LB136P-50
Armstrong Air® 1.343108 4SCU14LB 1-Stage Louvered Basic Enhanced Split System Air Conditioner, 3 ton Nominal, Power Source: 208/230 VAC, 1 ph, 60 Hz, 14 SEER
| Color | : | Baked Polyester Paint |
| Control Type | : | Piston |
| Cooling Capacity | : | 36000 Btu/hr |
| Dimensions | : | 31.25 in W x 29.38 in D x 33.75 in H |
| Discharge Line Size | : | 3/8 in |
| EER Rating | : | 12.2 |
| Flow Rate | : | 1200 cfm |
| Fuse Size | : | 30 A |
| Material | : | Galvanized Steel |
| Motor HP | : | 1/6 hp |
| Motor RPM | : | 825 rpm |
| Motor Type | : | Fan |
| Mounting Type | : | Grommet |
| Nominal Capacity | : | 3 ton |
| Power Source | : | 208/230 VAC, 1 ph, 60 Hz |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | 4SCU14LB |
| Sound Level | : | 78 dBA |
| Suction Line Size | : | 3/4 in |
| Temperature Rating | : | 125 deg F |
Delivering up to 16 SEER, the 4SCU16LE and 4SCU14LB are the perfect blend of higher efficiency, quality and quieter operation. Thoughtfully designed, these units may qualify for local utility rebates and reduce energy bills, while providing a comfortable home environment. In addition, Omniguard™ Total Corrosion Protection Technology offers enhanced corrosion protection, lowering overall maintenance costs.
Armstrong Air®, 1.343108, Enhanced Split System Air Conditioner, 1-Stage Louvered Basic, Series: 4SCU14LB, 3 ton Nominal, 36000 Btu/hr Cooling, 12.2 EER, 14 SEER, 208/230 VAC, 1 ph, 60 Hz Power Source, 30 A Fuse, 1200 cfm Flow Rate, Piston Control, R-410A Refrigerant, 125 deg F, 78 dBA Sound Level, 3/4 in Suction Line, 3/8 in Discharge Line, Fan Motor, 1/6 hp Motor, 825 rpm, Grommet Mounting, Galvanized Steel, Baked Polyester Paint, 31.25 in W x 29.38 in D x 33.75 in H Dimensions
- ENERGY STAR® certified - the ENERGY STAR® program is a joint program of the U.S. environmental protection agency and the U.S. department of energy helping us all save money and protect the environment through energy-efficient products and practices
- Up to 16 SEER efficiency - SEER seasonal energy efficiency ratio rates the energy efficiency of your cooling equipment
- The higher the SEER rating, the more efficiently your unit operates, saving you money on utility bills
- MHT™ Technology - Armstrong Air®s proprietary heat transfer system, a specially designed fan shroud pulls air evenly throughout the air conditioners coil surface
- The coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air, all combine for maximum heat transfer and efficiency
- Matched indoor system - when properly matched with a variable speed furnace or air handler, your outdoor unit can, in many cases, provide an elevated SEER rating
- Anti-microbial protection - on matched Armstrong Air® indoor coil, drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells
- Disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
- 1-stage scroll compressor - our reliable 1-stage compressors are made from quality materials that are built to provide you year-after-year comfort
- Omniguard™ total corrosion protection technology - select Armstrong Air® air conditioner units feature Omniguard™ total corrosion protection technology
- Offering improved corrosion protection compared to traditional coils and preserving the life of your system for years to come
- Split condensing unit
- Standard model
- Enhanced aluminum fins and copper tubing for high efficiency and capacity
- Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
- High efficiency scroll compressor
- Grommet-mounted compressor for quiet operation
- Protected against high temperature motor overload conditions
- Full metal louvered panel coil guard protection that is easily removed for coil cleaning
- Controls located in corner for easy installation and service
