Armstrong Air® 4SCU13LB148P

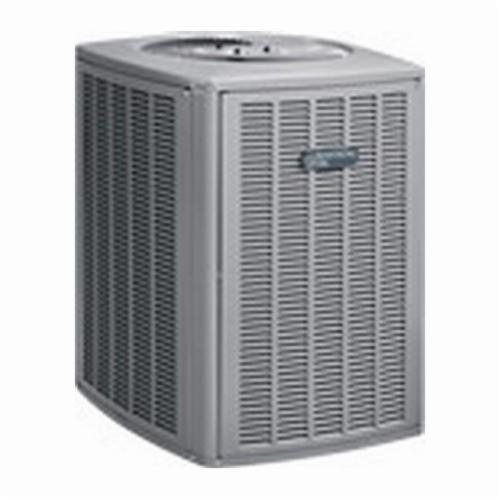

Armstrong Air® 4SCU13LB148P Louvered Split System Air Conditioner, 4 ton Cooling, 208/230 VAC, 31.9 A, 1 ph, 60 Hz, 13 SEER

Manufacturer: Allied Air Enterprises
Brand Name: Armstrong Air®
Part#: 4SCU13LB148P
MPN: 4SCU13LB148P
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Dimensions      :      29.38 in W x 31.25 in D x 33.75 in H
Discharge Line Size      :      3/8 in
EER Rating      :      11
Flow Rate      :      1600 cfm
Fuse Size      :      50 A
Material      :      Steel
Motor HP      :      1/4 hp
Motor RPM      :      825 rpm
Nominal Capacity      :      4 ton
Power Source      :      208/230 VAC, 31.9 A, 1 ph, 60 Hz
Refrigerant Type      :      R-410A
SEER Rating      :      13
Series      :      4SCU13LB
Sound Level      :      79 dBA
Suction Line Size      :      7/8 in
Temperature Rating      :      125 deg F
Type      :      Louvered

Inside the 4SCU13LB you'll find a unique blend of advanced technology that delivers consistent efficiency and performance through even the hottest summers. The 4SCU13LB is designed by comfort experts, and built by people who take genuine pride in their work. So, naturally, the professionals who know air conditioning continue to recommend the 4SCU13LB to their customers who want more.

Armstrong Air® Split System Air Conditioner, Louvered, Series: 4SCU13LB, 4 ton Nominal, 11 EER, 13 SEER, 208/230 VAC, 31.9 A, 1 ph, 60 Hz Power Source, 50 A Fuse, 1600 cfm Flow Rate, R-410A Refrigerant, 125 deg F, 79 dBA Sound Level, 7/8 in Suction Line, 3/8 in Discharge Line, 1/4 hp Motor, 825 rpm, Steel, 29.38 in W x 31.25 in D x 33.75 in H Dimensions

  • Enhanced aluminum fins and copper tubing for high efficiency and capacity
  • Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • High efficiency scroll compressor
  • Grommet-mounted compressor for quiet operation
  • Protected against high temperature motor overload conditions
  • Full metal louvered panel remove with just two screws per panel for easy coil cleaning and service
  • Controls located in corner for easy installation and service
  • Rounded corners for safety and attractive, clean appearance
  • Baked polyester paint finished over galvanized steel for maximum durability
  • External gauge ports for easy service
