Aprilaire® ZDS1010ZF

Aprilaire® offers all the rectangular sizes you need for residential and light commercial applications. Residential sizes feature the exclusive Flexible Link™ design while the larger, light commercial sizes (shaded blue in the table) utilize actuators matched to the needed torque requirements from a well-respected commercial actuator supplier.

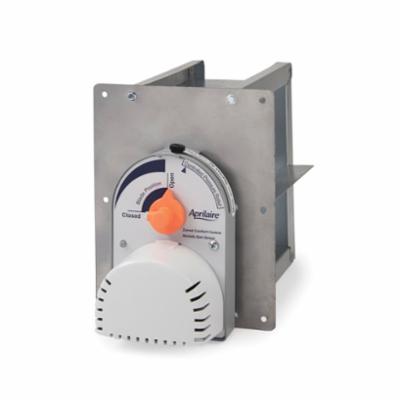

Aprilaire®, 6732, Rectangular Damper, Side Mount Comfort, 10 in H x 10 in W Size, Rectangle Shape, 24 VAC, Synchronous Motor, 2-Wire Electrical Connections, Steel, Galvanized, Silver

• Power-closed/spring-open operation
• Adjustable stop
• Installs in 4-1/4 in slot in duct
• Impedance protected for continuous stall
• Compatible with Aprilaire® zoned comfort control system
• Dampers are designed to work in low pressure systems (less than 1 in wc)
• Impedance protected for continuous stall capability without electrical or mechanical damage
• Damper comes with motor mounted

• Aprilaire 6721 Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Aprilaire_6721_Manual.pdf
• Aprilaire 6721 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Aprilaire_6721_Specification_Sheet.pdf
• Aprilaire 8465 Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Aprilaire_8465_Catalog.pdf
