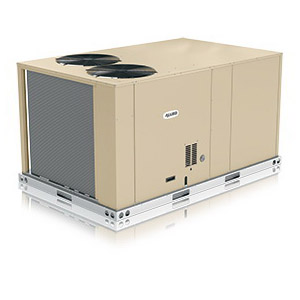

Allied Commercial™ ZHB036S4BN-Y

Allied Commercial™ Packaged Rooftop Heat Pump, Series: Z-Series™, 34200 Btu/hr Heating, 36000 Btu/hr Cooling, 208/230 VAC, 3.1 kW, 3 ph, 60 Hz Power Source, 1310 cfm, 11.3 EER, 13 SEER, 7.7 HSPF, 3.42 COP, R-410A Refrigerant, 1/4 hp Motor, 825 rpm, 25 A Fuse, Belt Drive, 79 dBA Sound Level, Steel, 75-7/8 in W x 47-1/4 in D x 36-7/8 in H Dimensions

• Matches the most popular footprint in the commercial industry, eliminating the need for an adapter curb in many replacement jobs
• Single-Zone VAV (Variable Air Volume) supply fan technology
• Up to 61% power savings over comparable units
• 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
• Eco-Last™ coil system uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils
• 18% lighter than other like units
• Goes through a 200 point quality check
• High-pressure switch guards the compressor from extreme operating conditions
• Proven scroll compressor helps long-term operation
• Tool-less access to filters allows for easy service
• Common utility connection points allow for faster and easier installations
• 10-year limited warranty on aluminized gas heat exchanger
• 5-year limited warranty on compressor
• 3-year limited warranty on eco-Last coil system
• 1-year limited warranty on covered components
• 2nd generation major design sequence, standard efficiency
• 18 to 20 A minimum circuit

• Allied Air AE826 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Allied_Air_AE826_Specification_Sheet.pdf
