Allied Commercial™ ZHA120S4BN-G

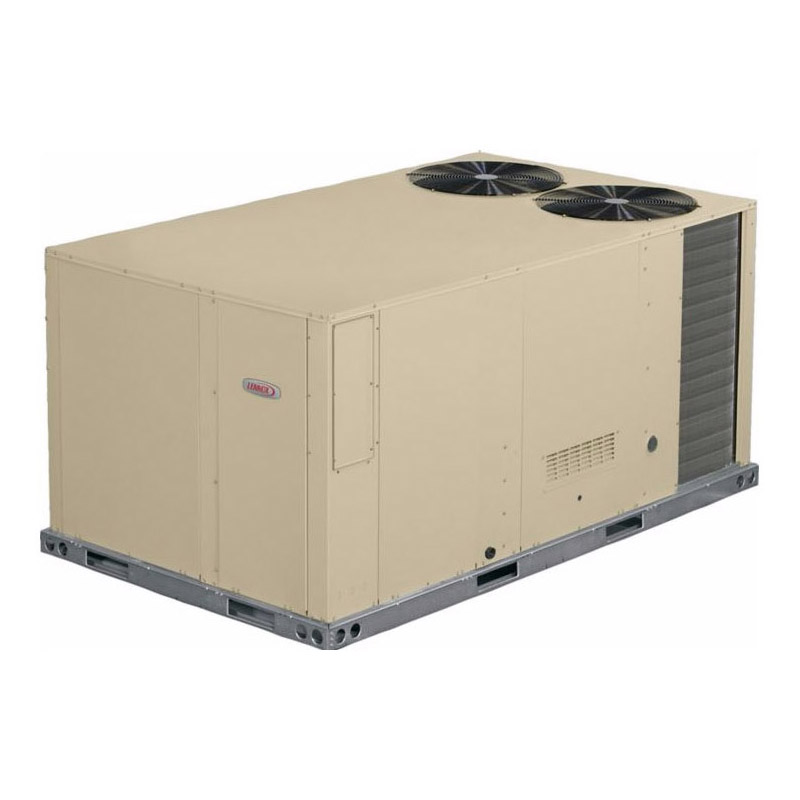

Allied Commercial™ KCA120S4BNG K-Series™ Rooftop Packaged Electric Cooling Unit, 460 VAC, 10.3 kW, 3 ph, 60 Hz, 16.5 SEER, 11.2 EER

Manufacturer: Allied Air Enterprises
Brand Name: Allied Commercial™
Part#: ZHA120S4BN-G
MPN: KCA120S4BNG
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Compressor Type      :      Scroll
Cooling Capacity      :      10 ton
Dimensions      :      60-1/8 in W x 101-1/4 in D x 46-7/8 in H
EER Rating      :      11.2
Flow Rate      :      3800 cfm
Fuse Size      :      30 to 35 A
IEER Rating      :      12
Material      :      Steel
Motor HP      :      1/3 hp Condenser, 2, 3, 5 hp Blower
Motor RPM      :      1075 rpm Condenser
Number of Speeds      :      1
Power Source      :      460 VAC, 10.3 kW, 3 ph, 60 Hz
Refrigerant Type      :      R-410A
SEER Rating      :      16.5
Series      :      K-Series™
Type      :      Rooftop

Allied Commercial™ Packaged Electric Cooling Unit, Rooftop, Series: K-Series™, 10 ton Cooling, 11.2 EER, 16.5 SEER, 12 IEER, Scroll Compressor, 460 VAC, 10.3 kW, 3 ph, 60 Hz Power Source, 30 to 35 A Fuse, 3800 cfm, R-410A Refrigerant, 1 Speed, 1/3 hp Condenser, 2, 3, 5 hp Blower Motor, 1075 rpm Condenser, Steel, 60-1/8 in W x 101-1/4 in D x 46-7/8 in H Dimensions

  • Single-Zone VAV (Variable Air Volume) supply fan technology
  • Up to 61% power savings over comparable units
  • 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
  • Eco-Last™ Coil System uses up to 52% less refrigerant, is up to 59% lighter, and has up to 20% fewer brazed joints than regular rooftop unit coils (standard on KC and KG models)
  • Isolated compressor for quieter operation and easier service
  • Easy-to-reach gas compartment for quick, simplified diagnostics and serviceability
  • More than 100 field-selectable options ensure fast and easy installation
  • High-pressure switch guards the compressor from extreme operating conditions
  • 1st generation major design sequence
  • Standard cooling efficiency
  • Belt drive, Constant Air Volume (CAV) blower
  • (1) 15 in Dia x 15 in W blower wheel
  • (4) 20 x 25 x 2 in disposable filter
  • 24 to 29 A minimum circuit
