Allied Commercial™ ZHA092S4MN-Y

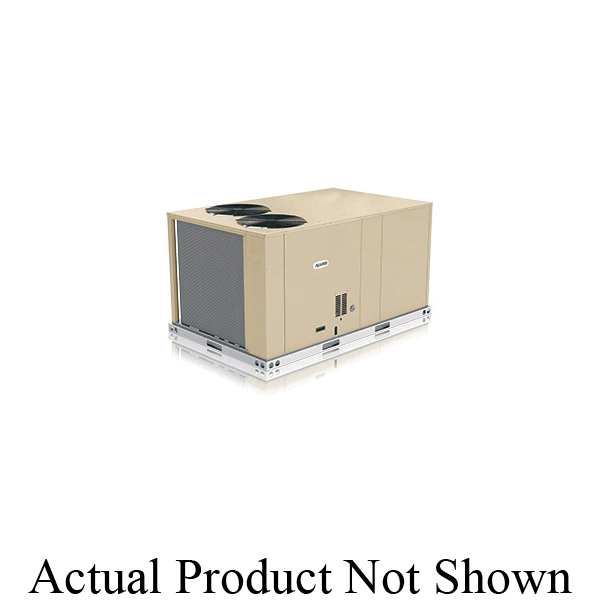

Allied Commercial™ AX698 Z-Series™ ZHA Packaged Rooftop Heat Pump Unit, 90000 Btu/hr Nominal, 80400 Btu/hr Heating, 78200 Btu/hr Cooling, 230 VAC, 3 ph, 60 Hz, 11.5 EER

Manufacturer: Allied Air Enterprises
Brand Name: Allied Commercial™
Part#: ZHA092S4MN-Y
MPN: AX698
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Compressor Type      :      Scroll
Cooling Capacity      :      78200 Btu/hr
Dimensions      :      60-1/8 in W
Drive Type      :      Belt
EER Rating      :      11.5
Flow Rate      :      2800 cfm
Heating Capacity      :      80400 Btu/hr
IEER Rating      :      12.3
Material      :      Heavy Gauge Steel Panel/Heavy Gauge Galvanized Steel Base Rail
Motor HP      :      1/3 hp
Motor RPM      :      896 rpm
Nominal Capacity      :      90000 Btu/hr
Power Source      :      230 VAC, 3 ph, 60 Hz
Refrigerant Type      :      R-410A
Series      :      Z-Series™ ZHA

Z-Series™ packaged rooftop units are built to be as solid as they are affordable. Available in sizes ranging from 3 to 12.5 tons, all with a popular footprint configuration, Z-Series™ units are ready for immediate installation.

Allied Commercial™ Packaged Rooftop Heat Pump Unit, Series: Z-Series™ ZHA, 90000 Btu/hr Nominal, 80400 Btu/hr Heating, 78200 Btu/hr Cooling, 230 VAC, 3 ph, 60 Hz Power Source, 2800 cfm, 11.5 EER, 12.3 IEER, Scroll Compressor, R-410A Refrigerant, 1/3 hp Motor, 896 rpm, Belt Drive, Heavy Gauge Steel Panel/Heavy Gauge Galvanized Steel Base Rail, 60-1/8 in W Dimensions

  • Matches the most popular footprint in the commercial industry, eliminating the need for an adapter curb in many replacement jobs
  • 1-zone VAV (variable air volume) supply fan technology
  • Up to 61% power savings over comparable units
  • 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
  • Eco-Last™ coil system uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils
  • 18% lighter than other like units
  • Goes through a 200 point quality check
  • High-pressure switch guards the compressor from extreme operating conditions
  • Proven scroll compressor helps long-term operation
  • Tool-less access to filters allows for easy service
  • Common utility connection points allow for faster and easier installations
  • Without factory installed electric heater
  • 1st generation major design sequence
  • Standard cooling efficiency
