Allied Commercial™ ZGB060S4EX

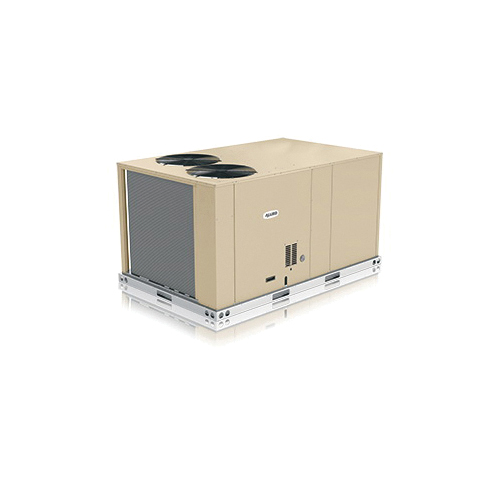

Allied Commercial™ CT866 Z-Series™ Standard Efficiency Gas/Electric Packaged Rooftop Unit With Electric Cooling, 5 ton Nominal, 208/230 V, 1 ph, 11 EER, Horizontal Air Flow
| Air Flow Type | : | Horizontal |
| Cooling Capacity | : | 57000 Btu/hr |
| Dimensions | : | 75-7/8 in W x 47-1/4 in D X 44-7/8 in H |
| Drive Type | : | Direct |
| EER Rating | : | 11 |
| Flow Rate | : | 1725 cfm |
| Frequency Rating | : | 60 Hz |
| Heat Input | : | 150000 Btu/hr |
| Low NOX | : | Yes |
| Material | : | Steel |
| Motor HP | : | 1/4 hp |
| Motor RPM | : | 825 rpm |
| Nominal Capacity | : | 5 ton |
| Number of Phases | : | 1 |
| Power Rating | : | 5.1 kW |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | Z-Series™ |
| Sound Level | : | 78 dBA |
| Type | : | Standard Efficiency |
| Voltage Rating | : | 208/230 V |
The Z-Series™ delivers both value and flexibility, with proven performance. Available in 3 to 12.5 ton gas/electric, electric/electric and up to 10 ton heat pump models, Z-Series™ rooftop units are compatible with many replacement jobs and fit one of today's most popular curb sizes. And best of all, it is available when you need it.
Allied Commercial™ Gas/Electric Packaged Rooftop Unit, Standard Efficiency, Series: Z-Series™, 5 ton Nominal Capacity, 57000 Btu/hr Cooling, 208/230 V, 1, 60 Hz, 5.1 kW, 11 EER, 14 SEER, Yes Low NOX, R-410A, Horizontal Air Flow Type, 150000 Btu/hr Heat Input, 1725 cfm, 78 dBA, Direct Drive, 1/4 hp Motor, 825 rpm, Steel, 75-7/8 in W x 47-1/4 in D X 44-7/8 in H
- Industry standard design and footprint
- Matches the most popular footprint in the commercial industry, eliminating the need for an adapter curb in many replacement jobs
- Eco-Last™ coil system uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils (standard on KC and KG models)
- 18% lighter than other like units
- Goes through a 200 point quality check
- High pressure switch guards the compressor from extreme operating conditions
- Proven scroll compressor helps long-term operation
- Tool less access to filters allows for easy service
- Common utility connection points allow for faster and easier installations
- High gas heat, 2-stage, low NOx
