Allied Commercial™ ZGA120S4BH-Y

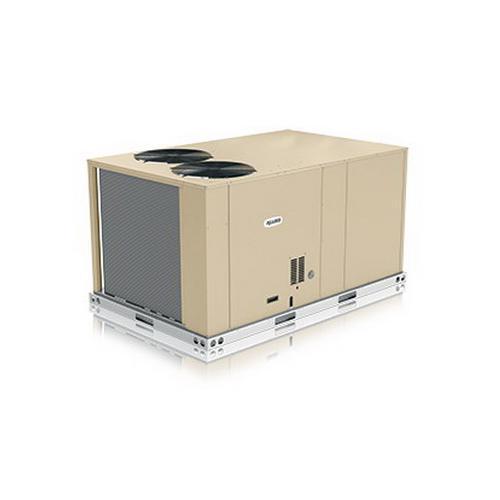

Allied Commercial™ ZGA120S4BH Y Z-Series™ Gas/Electric Packaged Rooftop Unit With Electric Cooling, 10 ton Nominal, 240000 Btu/hr Heating, 208/230 VAC, 3 ph, 11 EER

Manufacturer: Allied Air Enterprises
Brand Name: Allied Commercial™
Part#: ZGA120S4BH-Y
MPN: ZGA120S4BH Y
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Cooling Capacity      :      120000 Btu/hr
Dimensions      :      95-3/8 in W x 60-1/8 in D x 48-7/8 in H
Drive Type      :      Belt
EER Rating      :      11
Flow Rate      :      3800 cfm
Frequency Rating      :      60 Hz
Heating Capacity      :      240000 Btu/hr
IEER Rating      :      11.8
Low NOX      :      Yes
Material      :      Steel
Motor HP      :      1/3 hp Condenser
Motor RPM      :      1075 rpm Condenser
Nominal Capacity      :      10 ton
Number of Phases      :      3
Number of Speeds      :      2
Power Rating      :      10.5 kW
Refrigerant Type      :      R-410A
Series      :      Z-Series™
Voltage Rating      :      208/230 VAC

The Z-Series™ delivers both value and flexibility, with proven performance. Available in 3- to 12.5-ton gas/electric, electric/electric and up to 10-ton heat pump models, Z-Series rooftop units are compatible with many replacement jobs and fit one of today's most popular curb sizes. And best of all, it is available when you need it.

Allied Commercial™ Gas/Electric Packaged Rooftop Unit, Series: Z-Series™, 10 ton Nominal Capacity, 120000 Btu/hr Cooling, 240000 Btu/hr Heating, 208/230 VAC, 3 ph, 60 Hz, 10.5 kW, 11 EER, 11.8 IEER, Low NOx: Yes, R-410A, 2 Speed, 3800 cfm, Belt Drive, 1/3 hp Condenser Motor, 1075 rpm Condenser, Steel, 95-3/8 in W x 60-1/8 in D x 48-7/8 in H

  • Matches the most popular footprint in the commercial industry, eliminating the need for an adapter curb in many replacement jobs
  • Single-Zone VAV (Variable Air Volume) supply fan technology
  • Up to 61% power savings over comparable units
  • 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
  • BACnet compatibility on 7.5- to 12.5-ton models
  • Eco-Last™ coil System uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils
  • 18% lighter than other like units
  • Goes through a 200-point quality check
  • High-pressure switch guards the compressor from extreme operating conditions
  • Proven scroll compressor helps long-term operation
  • Tool-less access to filters allows for easy service
  • Common utility connection points allow for faster and easier installations
  • First generation major design sequence
  • Standard cooling efficiency
