Allied Commercial™ KGB060S4EX

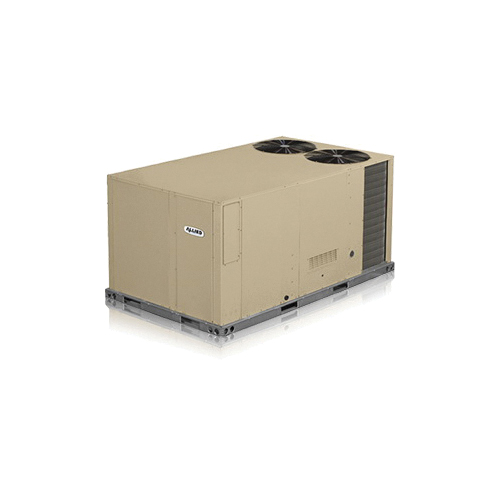

Allied Commercial™ CW115 K-Series™ Standard Efficiency Gas/Electric Packaged Rooftop Unit With Electric Cooling, 5 ton Nominal, 81 % AFUE, 208/230 V, 1 ph, 11 EER
| AFUE Rating | : | 81 % |
| Cooling Capacity | : | 58500 Btu/hr |
| Dimensions | : | 85-1/4 in W x 47 in D x 46-7/8 in H |
| Drive Type | : | Direct |
| EER Rating | : | 11 |
| Flow Rate | : | 1760 cfm |
| Frequency Rating | : | 60 Hz |
| Heat Input | : | 150000 Btu/hr |
| Material | : | Steel |
| Motor HP | : | 1/3 hp Condenser, 1 hp ECM Blower |
| Motor RPM | : | 1075 rpm |
| Nominal Capacity | : | 5 ton |
| Number of Phases | : | 1 |
| Power Rating | : | 5 kW |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | K-Series™ |
| Sound Level | : | 83 dBA |
| Type | : | Standard Efficiency |
| Voltage Rating | : | 208/230 V |
K-Series™ rooftop units are known for precise, dependable performance. Thanks to advanced features and thoughtful product designs, the K-Series™ is flexible, too, making it an excellent choice for virtually any commercial application.
Allied Commercial™ Gas/Electric Packaged Rooftop Unit, Standard Efficiency, Series: K-Series™, 5 ton Nominal Capacity, 58500 Btu/hr Cooling, 208/230 V, 1, 60 Hz, 5 kW, 81 % AFUE, 11 EER, 14 SEER, R-410A, 150000 Btu/hr Heat Input, 1760 cfm, 83 dBA, Direct Drive, 1/3 hp Condenser, 1 hp ECM Blower Motor, 1075 rpm, Steel, 85-1/4 in W x 47 in D x 46-7/8 in H
- Single zone VAV (variable air volume) supply fan technology
- Up to 61% power savings over comparable units
- 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
- Eco-Last™ coil system uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils (standard on KC and KG models)
- Isolated compressor for quieter operation and easier service
- Easy-to-reach gas compartment for quick, simplified diagnostics and serviceability
- More than 100 field-selectable options ensure fast and easy installation
- High pressure switch guards the compressor from extreme operating conditions
- High gas heat, 2-stage, low NOx
