Allied Commercial™ KGA120S4BH-G

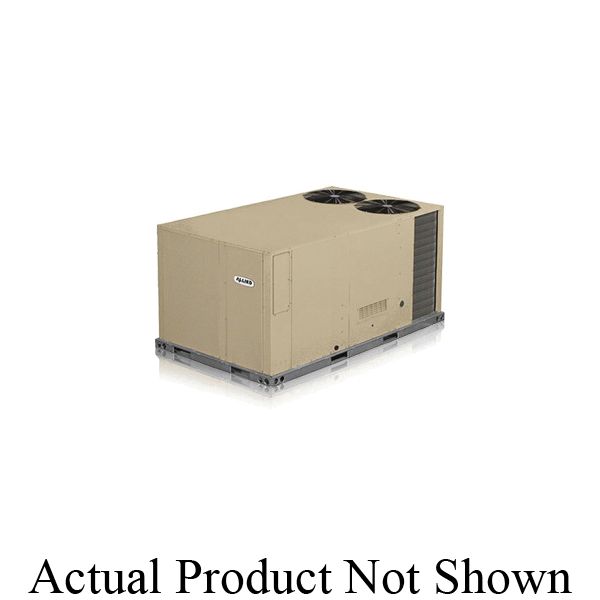

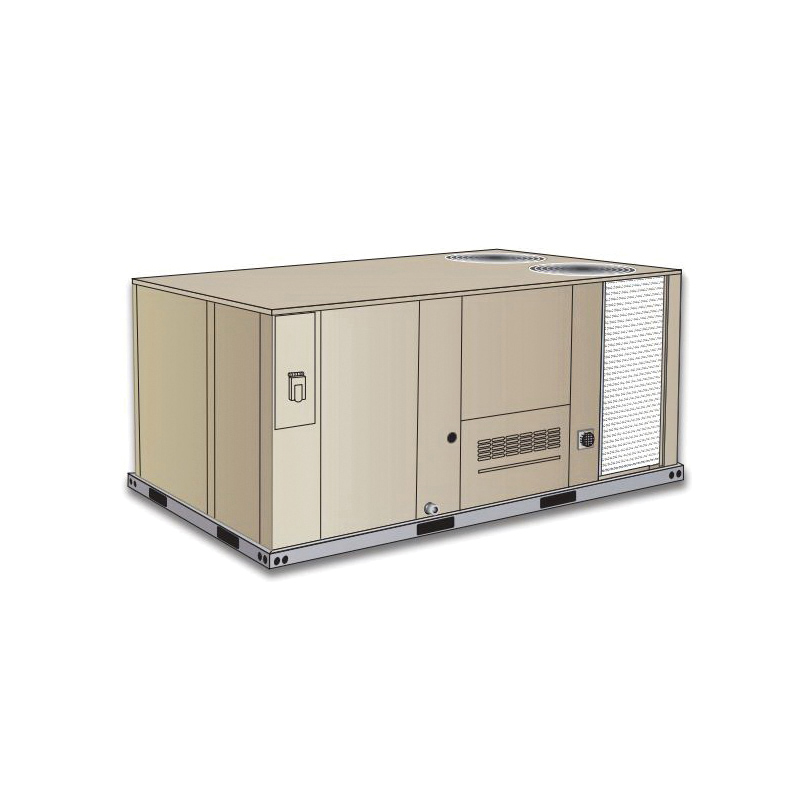

Allied Commercial™ BV603 K-Series™ KGB 2-Stage Packaged Gas Heating/Electric Cooling Rooftop Unit, 10 ton Nominal, 104000 Btu/hr Heating, 460 VAC, 3 ph, 11 EER, Horizontal/Downflow Air Flow
| Air Flow Type | : | Horizontal/Downflow |
| Coil Type | : | Condenser |
| Control Type | : | Refrigerant Metering Orifice (RFC) |
| Cooling Capacity | : | 115000 Btu/hr |
| Dimensions | : | 60-1/8 in W |
| Drive Type | : | Belt |
| EER Rating | : | 11 |
| Flow Rate | : | 3000 cfm |
| Frequency Rating | : | 60 Hz |
| Heating Capacity | : | 104000 Btu/hr |
| IEER Rating | : | 12.7 |
| Low NOX | : | No |
| Material | : | Heavy Gauge Steel Panel/Heavy Gauge Galvanized Steel Base Rail |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Nominal Capacity | : | 10 ton |
| Number of Phases | : | 3 |
| Number of Speeds | : | 2 |
| Power Rating | : | 10.5 kW |
| Refrigerant Type | : | R-410A |
| Series | : | K-Series™ KGB |
The K-Series™ is engineered for installation flexibility, energy-efficient performance and easy serviceability.
Allied Commercial™ Packaged Gas Heating/Electric Cooling Rooftop Unit, 2-Stage, Series: K-Series™ KGB, 10 ton Nominal Capacity, 115000 Btu/hr Cooling, 104000 Btu/hr Heating, 460 VAC, 3, 60 Hz, 10.5 kW, 11 EER, 12.7 IEER, No Low NOX, Condenser Coil, R-410A, Horizontal/Downflow, 2 Speed, 3000 cfm, Refrigerant Metering Orifice (RFC) Control, 88 dBA, Belt Drive, 1/3 hp Motor, 1075 rpm, Heavy Gauge Steel Panel/Heavy Gauge Galvanized Steel Base Rail, 60-1/8 in W
- Constant Air Volume (CAV) belt drive blower motor
- Eco-Last™ coil system uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils
- Isolated compressor for quieter operation and easier service
- Easy-to-reach gas compartment for quick, simplified diagnostics and serviceability
- High-pressure switch guards the compressor from extreme operating conditions
- 2nd generation major design sequence
- Standard cooling efficiency
