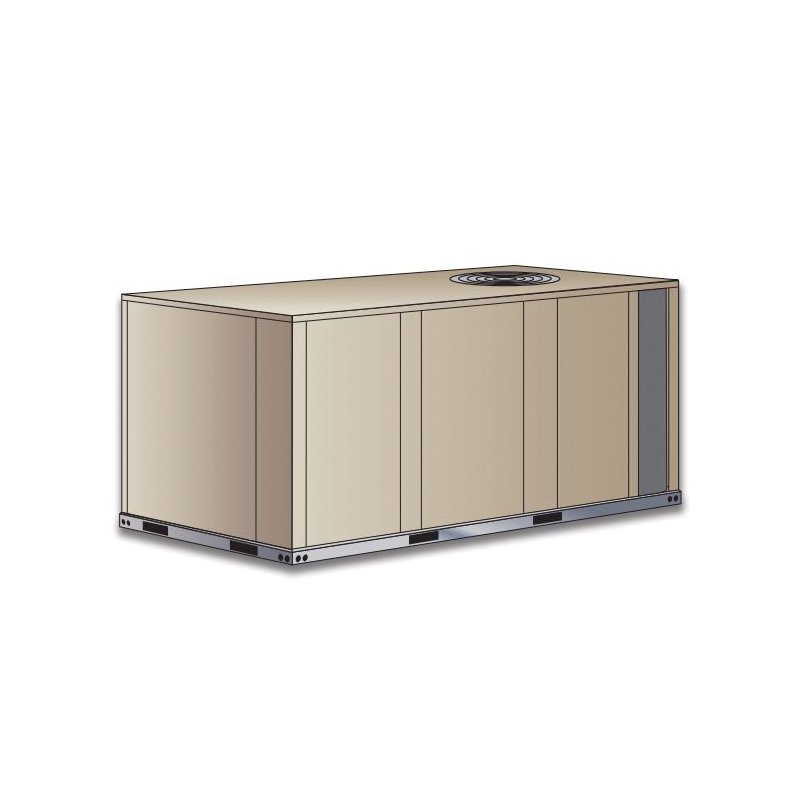

Allied Commercial™ KGA048S4BM-Y

K-Series™ rooftop units are known for precise, dependable performance. And thanks to advanced features and thoughtful product designs, the K-Series is flexible, too, making it an excellent choice for virtually any commercial application.

Allied Commercial™ Gas/Electric Packaged Rooftop Unit, Series: K-Series™, 4 ton Nominal Capacity, 48000 Btu/hr Cooling, 208/230 VAC, 60 Hz, 4.4 kW, 11 EER, 13 SEER, Low NOx: Yes, R-410A, 117000 to 180000 Btu/hr Heat Input, 1 Speed, 1600 cfm, Belt Drive, 1/4 hp Condenser Motor, 825 rpm, Steel, 101-1/4 in L x 60-1/8 in W x 46-7/8 in D

• Single-Zone VAV (Variable Air Volume) supply fan technology
• Up to 61% power savings over comparable units
• 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
• Eco-Last™ coil System uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils (standard on KC and KG models)
• Isolated compressor for quieter operation and easier service
• Easy-to-reach gas compartment for quick, simplified diagnostics and serviceability
• High-pressure switch guards the compressor from extreme operating conditions
• Packaged gas heat with electric cooling
• Standard efficiency
• 1 stage medium gas heating
• 1, 2 hp indoor blower

• Lennox KCA060S4BNY Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lennox_KCA060S4BNY_Catalog.pdf
• Lennox KGA036S4DMY Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lennox_KGA036S4DMY_Specification_Sheet.pdf
