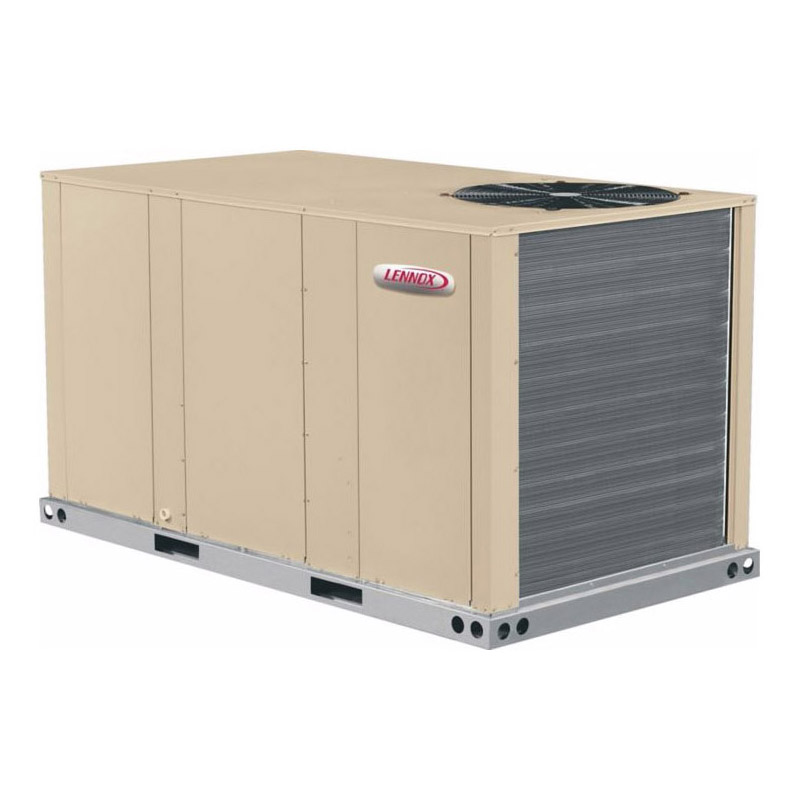

Allied Commercial™ KCB036S4DN-P

Allied Commercial™ AC291 K-Series™ Rooftop Packaged Electric Cooling Unit, 208/230 VAC, 2.9 kW, 1 ph, 60 Hz, 14 SEER, 12.5 EER

Manufacturer: Allied Air Enterprises
Brand Name: Allied Commercial™
Part#: KCB036S4DN-P
MPN: AC291
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Compressor Type      :      Scroll
Cooling Capacity      :      3 ton
Dimensions      :      47 in W x 85-1/4 in D x 38-7/8 in H
EER Rating      :      12.5
Flow Rate      :      1140 cfm
Fuse Size      :      40 A
IEER Rating      :      14.5
Material      :      Steel
Motor HP      :      1/4 hp Condenser, 1/2 hp Blower
Motor RPM      :      825 rpm Condenser
Motor Type      :      Multi-Speed Blower
Power Source      :      208/230 VAC, 2.9 kW, 1 ph, 60 Hz
Refrigerant Type      :      R-410A
SEER Rating      :      14
Series      :      K-Series™
Type      :      Rooftop

Allied Commercial™ Packaged Electric Cooling Unit, Rooftop, Series: K-Series™, 3 ton Cooling, 12.5 EER, 14 SEER, 14.5 IEER, Scroll Compressor, 208/230 VAC, 2.9 kW, 1 ph, 60 Hz Power Source, 40 A Fuse, 1140 cfm, R-410A Refrigerant, Multi-Speed Blower Motor, 1/4 hp Condenser, 1/2 hp Blower Motor, 825 rpm Condenser, Steel, 47 in W x 85-1/4 in D x 38-7/8 in H Dimensions

  • Single-Zone VAV (Variable Air Volume) supply fan technology
  • Up to 61% power savings over comparable units
  • 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
  • Eco-Last™ Coil System uses up to 52% less refrigerant, is up to 59% lighter, and has up to 20% fewer brazed joints than regular rooftop unit coils (standard on KC and KG models)
  • Isolated compressor for quieter operation and easier service
  • Easy-to-reach gas compartment for quick, simplified diagnostics and serviceability
  • More than 100 field-selectable options ensure fast and easy installation
  • High-pressure switch guards the compressor from extreme operating conditions
  • 2nd generation major design sequence
  • Standard cooling efficiency
  • Direct drive blower
  • (1) 10 in Dia x 10 in W blower wheel
  • (4) 16 x 20 x 2 in disposable filter
  • 25 A minimum circuit
