Allied Commercial™ 11J11

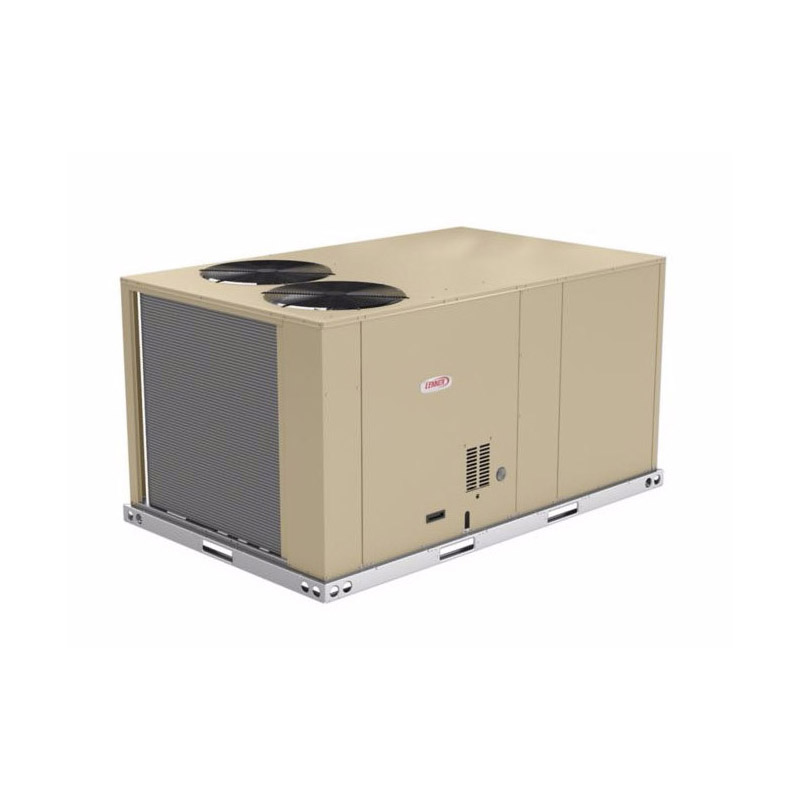

Allied Commercial™ Gas/Electric Packaged Rooftop Unit, Series: Z-Series™, 12.5 ton Nominal Capacity, 150000 Btu/hr Cooling, 240000 Btu/hr Heating, 208/230 VAC, 60 Hz, 12.6 kW, 10.8 EER, 11.4 IEER, Low NOx: No, R-410A, 2 Speed, 4400 cfm, Belt Drive, 1/3 hp Condenser Motor, 1075 rpm Condenser, Steel, 95-3/8 in W x 60-1/8 in D x 48-7/8 in H

• Matches the most popular footprint in the commercial industry, eliminating the need for an adapter curb in many replacement jobs
• Single-Zone VAV (Variable Air Volume) supply fan technology
• Up to 61% power savings over comparable units
• 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
• BACnet compatibility on 7.5- to 12.5-ton models
• Eco-Last™ coil System uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils
• 18% lighter than other like units
• Goes through a 200-point quality check
• High-pressure switch guards the compressor from extreme operating conditions
• Proven scroll compressor helps long-term operation
• Tool-less access to filters allows for easy service
• Common utility connection points allow for faster and easier installations
• First generation major design sequence
• Standard cooling efficiency
• 43 to 53 A minimum circuit, 50 to 60 A maximum overcurrent protection
• 13.5 A rated load and 109 A locked rotor compressor 1, 13.5 A rated load and 109 A locked rotor compressor 2, 2.4 A full load outdoor fan motor
• Sensible Economizer (Fac) outdoor air supply
