| Amperage Rating | : | 1.7 A |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5.5 in Dia x 7.18 in H |
| Enclosure Type | : | Totally Enclosed |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | CCWLE |
| Shaft Size | : | 1/2 in Dia x 1-1/2 in L |
| Special Features | : | Permanent Split Capacitor Motors |
| Speed | : | 825 rpm |
| Voltage Rating | : | 208/230 VAC |

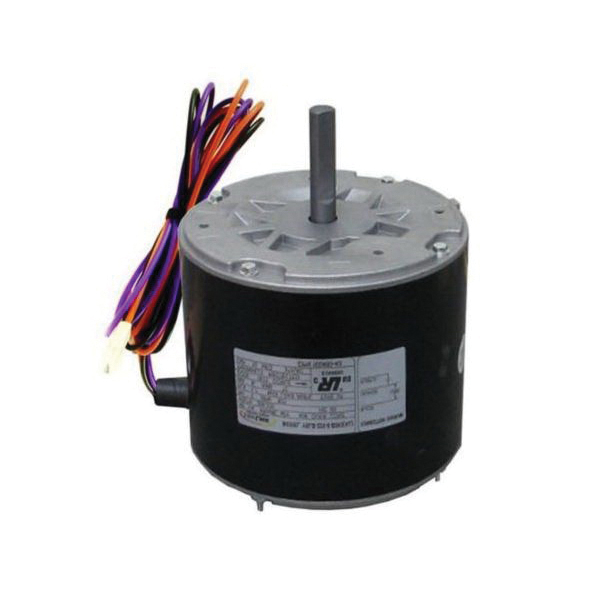

ALLIED™ Motor, Condenser Fan Motors Application, Permanent Split Capacitor Motors Special Features, 1/4 hp, 208/230 VAC, 1.7 A, 60 Hz Frequency, 1 ph, 825 rpm Speed, 1 Speed, Totally Enclosed Enclosure, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, CCWLE Rotation, Ball Bearing, Stud Mounting, Insulation Class: Class B, 5.5 in Dia x 7.18 in H Dimensions
