Air King® EVD

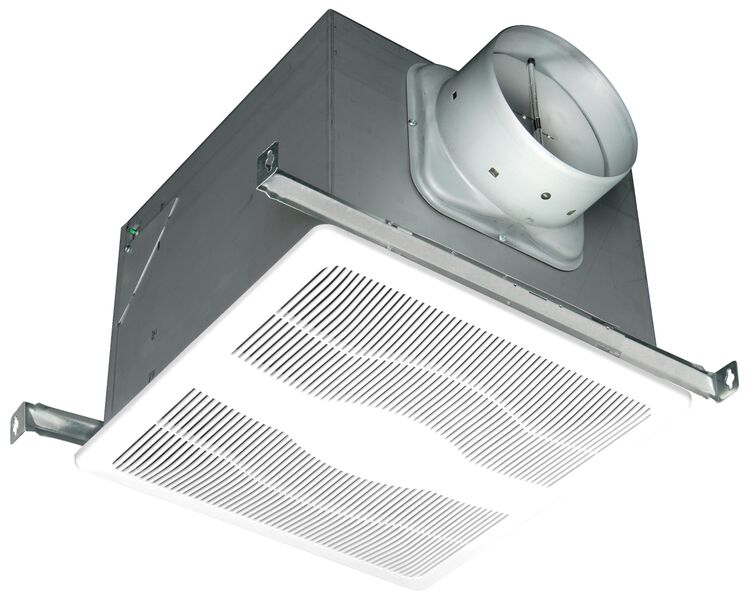

Air King® EVD ECO Variable Speed Exhaust Fan, 150 cfm, 6 in Dia Duct, 37 W, 115/120 V AC, 0.3 A, Domestic

Manufacturer: Air King Ventilation Products
Brand Name: Air King®
Part#: EVD
MPN: EVD
Min. Order Qty: 1
Sold As: 1/PK
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      0.3 A
Color      :      White
Domestic/Import      :      Domestic
Duct Diameter      :      6 in
Flow Rate      :      150 cfm
Frequency Rating      :      60 Hz
Grille Length      :      14-7/16 in
Grille Material      :      Polymeric
Grille Width      :      14-7/16 in
Housing Height      :      9-7/8 in
Housing Length      :      12-7/8 in
Housing Material      :      Galvanized Steel
Housing Width      :      12-3/4 in
Humidity Sensing      :      No
Motion Sensing      :      No
Mounting Type      :      Ceiling
Power Rating      :      37 W
Series      :      ECO
Type      :      Variable Speed
Voltage Rating      :      115/120 V AC

Air King® Exhaust Fan, Variable Speed, Series: ECO, 150 cfm, 6 in Duct Dia, 115/120 V AC, 0.3 A, 60 Hz, 37 W, 14-7/16 in Grille Length, 14-7/16 in Grille Width, Polymeric Grille, 12-7/8 in Housing Length, 12-3/4 in Housing Width, 9-7/8 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Domestic

  • Can be used to comply with the ventilation standards required by LEED for homes
  • Perfect ventilation solution for weatherization assistance program
  • 8 capacity settings on low speed allow the fan to be set to the required exhaust rate for continuous ventilation
  • Low speed set points include 30/40/50/60/70/90/100 and 120 cfm
  • High speed rapidly clears the air of moisture/odors or other contaminants
  • High speed set points include - 80/110/130 cfm and boost

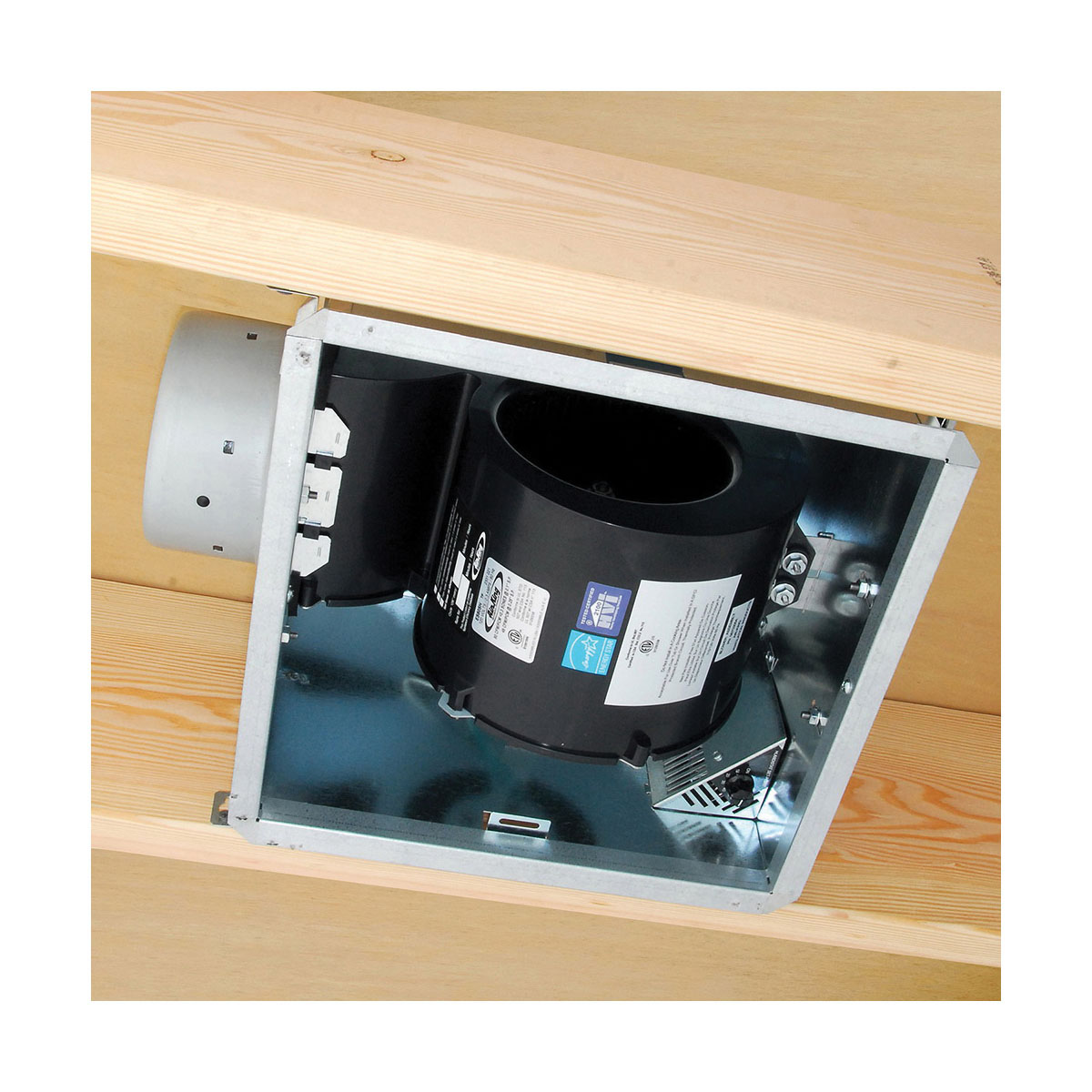

  • Easily installs using the included adjustable hanging brackets
  • UL listed for installation over a tub or shower on a GFCI circuit
  • 6 in round duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today
  • Side access panel allows you to wire the fan from inside or outside the housing
  • 23 ga galvanized steel housing
  • 30 to 150 cfm at 0.3 sones
