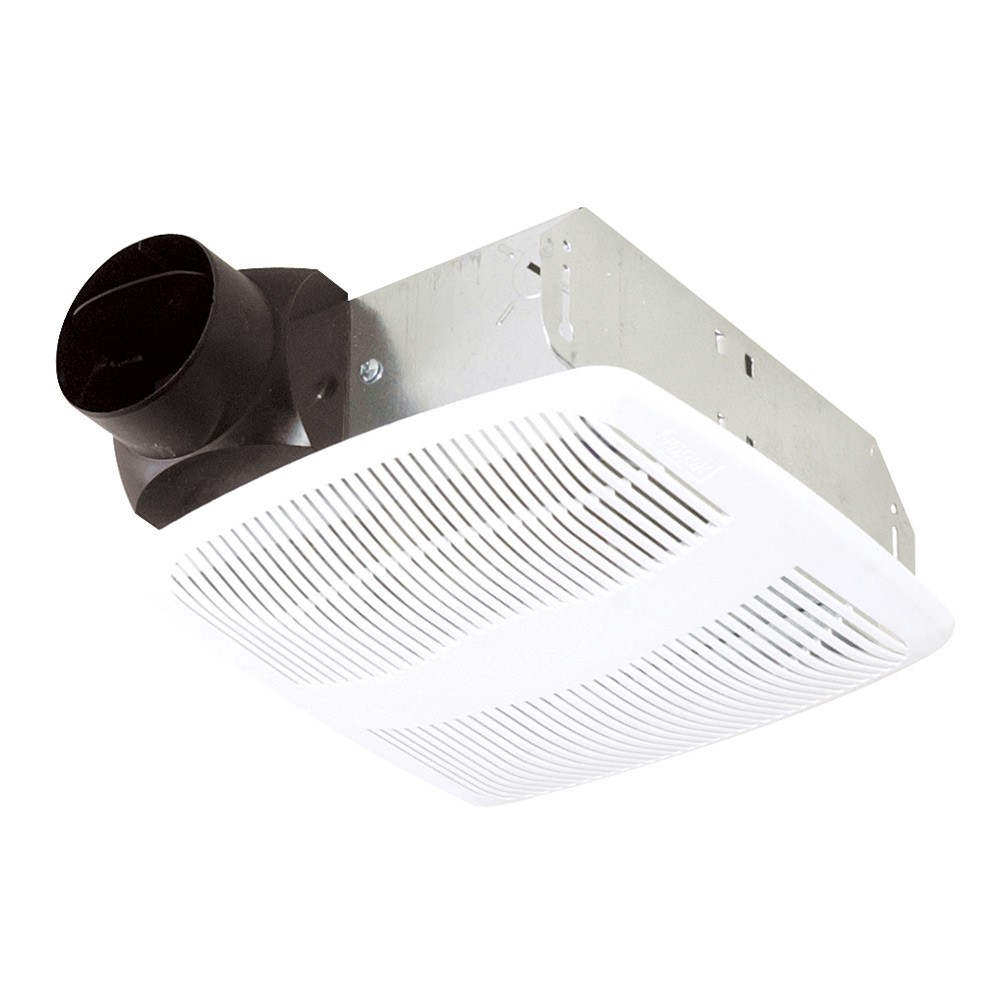

Air King® AS50

Air King® AS50 AS Series Exhaust Fan, 50 cfm Flow Rate, 3 in Dia Duct, 48 W Power Rating, 120 VAC, 0.9 A, Domestic

Manufacturer: Air King Ventilation Products
Brand Name: Air King®
Part#: AS50
MPN: AS50
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      0.9 A
Color      :      White
Domestic/Import      :      Domestic
Duct Diameter      :      3 in
Flow Rate      :      50 cfm
Frequency Rating      :      60 Hz
Grille Length      :      10 in
Grille Material      :      Polymer
Grille Width      :      9-1/2 in
Housing Height      :      3-1/4 in
Housing Length      :      7-1/4 in
Housing Material      :      Metal
Housing Width      :      7-1/4 in
Mounting Type      :      Ceiling
Power Rating      :      48 W
Series      :      AS Series
Voltage Rating      :      120 VAC

Air King® Exhaust Fan, Series: AS Series, 50 cfm, 3 in Diameter Duct, 120 VAC, 0.9 A, 60 Hz Frequency, 48 W Power, 10 in Grille Length, 9-1/2 in Grille Width, Polymer Grille, 7-1/4 in Housing Length, 7-1/4 in Housing Width, 3-1/4 in Housing Height, Metal Housing Material, Ceiling Mounting, White, Domestic

  • Easily installs using the double thick keyhole mounting tabs
  • Slim 3.75 in housing allows the unit to be installed into wall applications
  • UL Listed for installation over a tub or shower on a GFCI circuit
  • 3 in plastic damper protects against backdrafts and ensures quiet operation
  • Available in contractor packs (6 housings and 6 trim kits)
  • Grill white, polymeric grill secured in place with torsion springs; easily removed if necessary
  • Blower wheel one piece polymeric wheel, 4-1/2 in dia, 1 in wide with 10 fins
  • Motor single coil plug-in, two pole motor, life time lubrication, thermally protected
  • Fan housing 23 ga galvanized metal housing, double metal thickness mounting tabs
  • Duct Collar Plastic collar for 3 in duct connection, comes complete with built in non-metallic back draft damper for quiet operation
  • Ventilating area for bathrooms up to 50 sq ft for other rooms up to 60 sq ft
  • Unit mounting designed to mount in ceilings or walls with at least 4 in of clearance, the housing will mount through drywall thickness up to 3/4 in, with a rough-in opening of 7-1/2 in x 7-1/2 in
