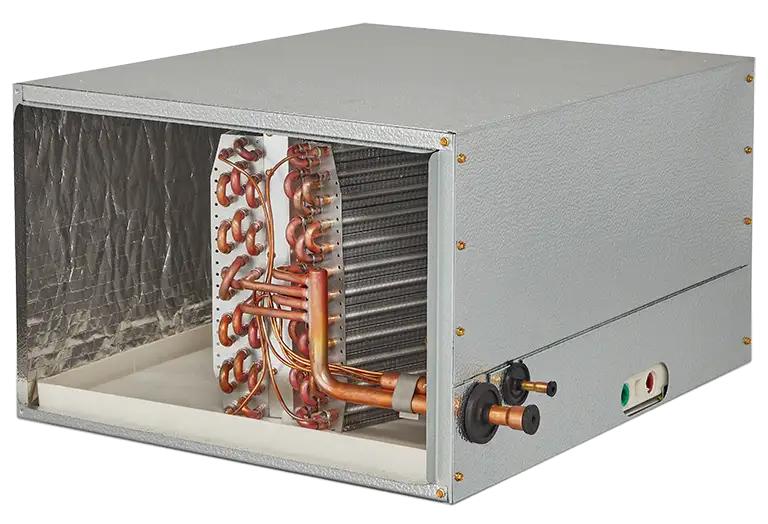

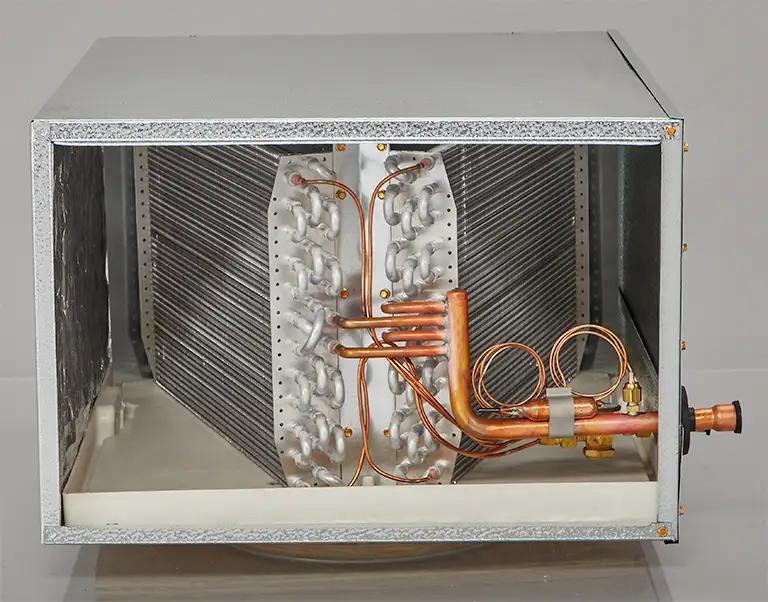

ADP, 74720820, Horizontal Evaporator Coil, Series: HD series, 36000 Btu/hr Cooling, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, Copper Tubing, 21 in H x 26.5 in W Dimensions
- Rifled copper tubing
- Lanced fin design.
- R-454B, R-32, AC & Heat Pump compatible with Refrigerant Detection System
- Refrigerant detection sensor bracket factory installed
- Dual 3/4 in FPT condensate drains on front of coil
- Refrigerant connections are 3/8 in ODF liquid and 7/8 in ODF suction
- Non-captive panels allow access to inside of cabinet without the need to cut refrigerant lines
- Side panel with only six screws for fast and easy coil access
- UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer
- Coils are air pressure tested at 500 psi, leak tested with Helium, sealed with rubber plugs and then charged with dry air
- Threaded expansion valves available factory installed or as a field installed kit.
- Heavy 24 gauge embossed galvanized cabinets fully lined with 5/8 in foil faced insulation
- All coils are foam packed and include bar coding on label
- Easy to use filler strip, if coil dimensions are larger than furnace
- Drain pan has trough to fully drain condensate away
- Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan
