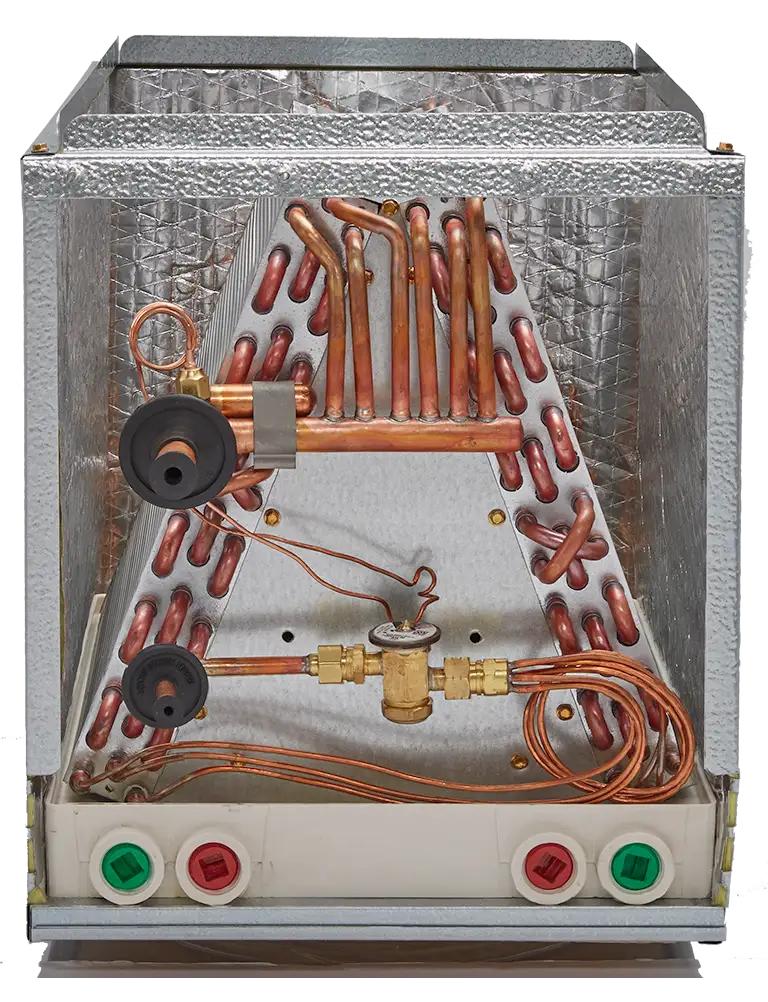

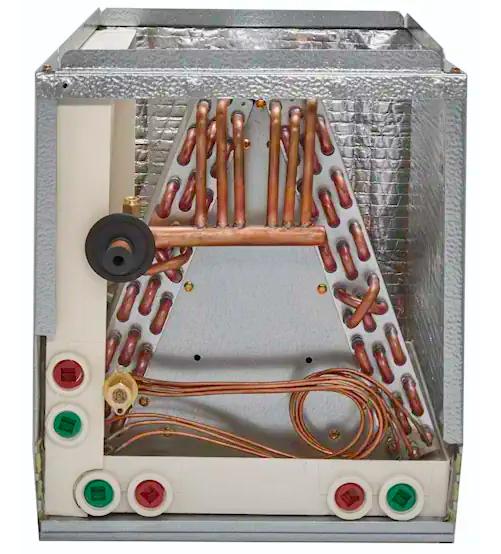

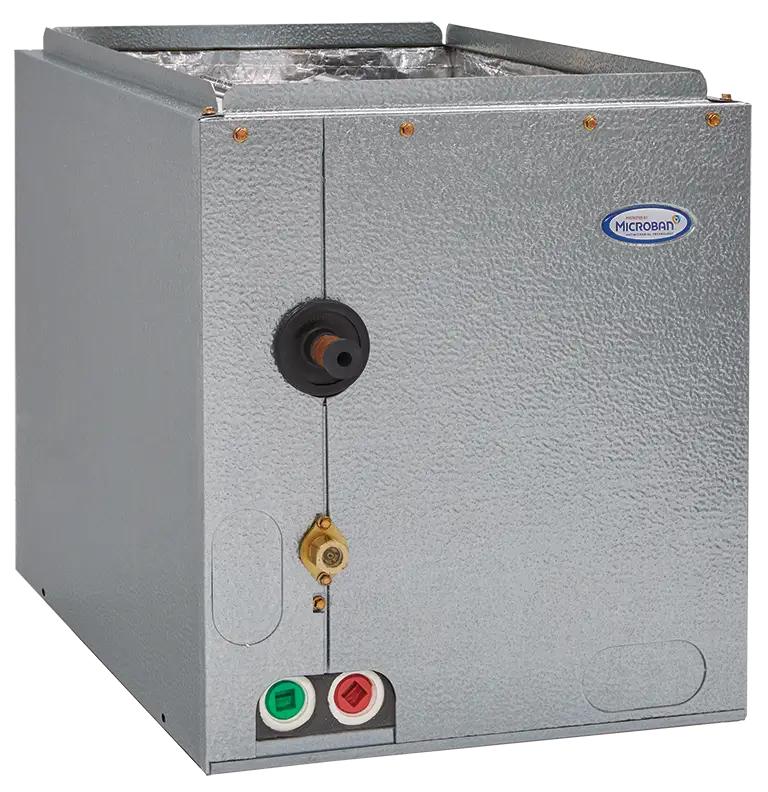

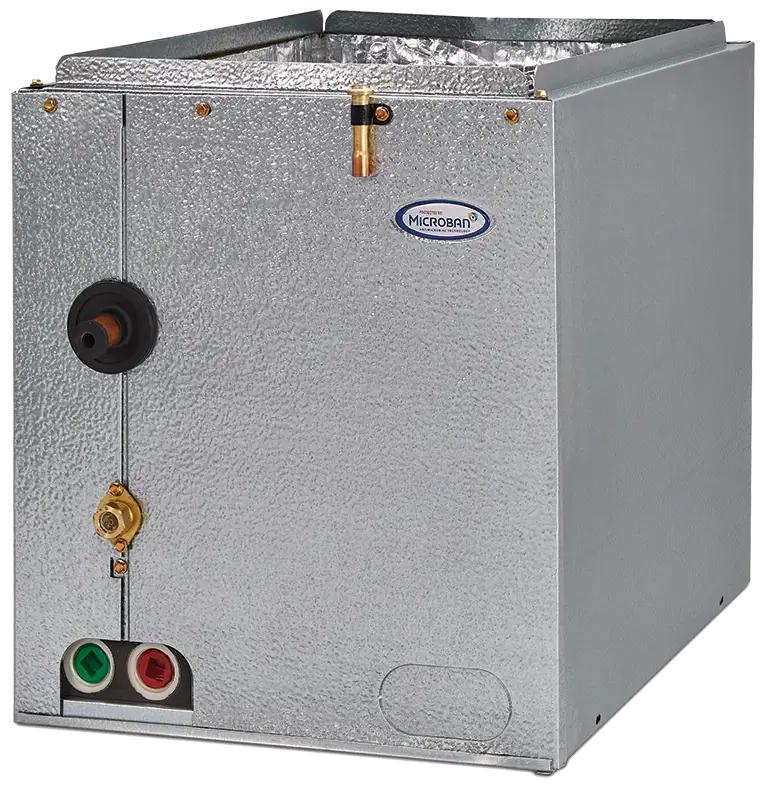

Advanced Distributor Products® CCE2.5-3TXV-B

ADP, 70193634, Cased Evaporator Coil, Series: HE Series, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 17.5 in L x 21 in W x 25.5 in H Dimensions

• For use with R-410a refrigerants
• Coils are individually tested at 450 PSI, then pressurized and sealed
• Rifled Copper Tubing
• UV resistant drain pans are molded of high temperature (450 deg F) engineering polymer
• Refrigerant connections are 3/8 in ODF liquid and 3/4 in ODF (18-36 MBTUH) or 7/8 in ODF (42-60 MBTUH) suction
• Factory installed, screw-on expansion valves with threaded equalizer tube connection Available for R410a, AC or HP applications
• Florators standard
• Patented lance fin design
• 13/14 SEER
• 2.5 to 3 Ton

• 1151 ADP 70193634 Instruction Installation Manual
• 1151 ADP 70193634 Specification Sheet
• ADP AE34936D175B2001AP Catalog 1151
• ADP AE34936D175B2001AP Warranty 1151
