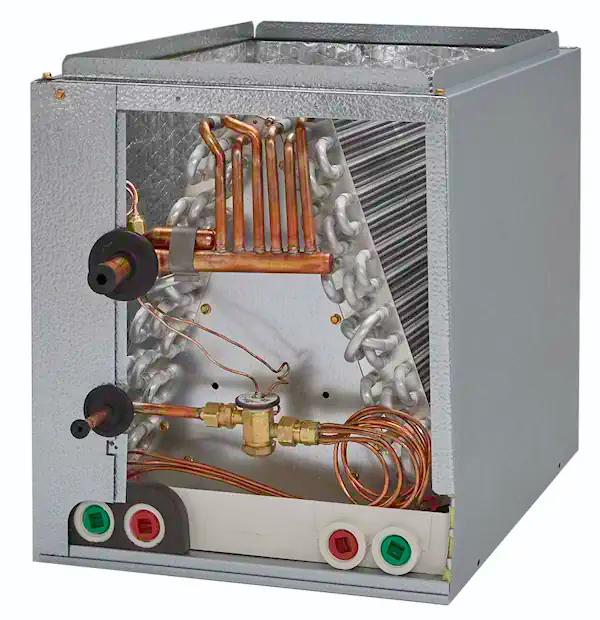

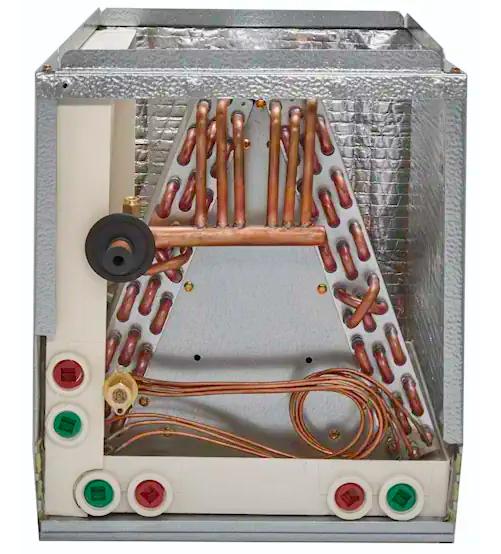

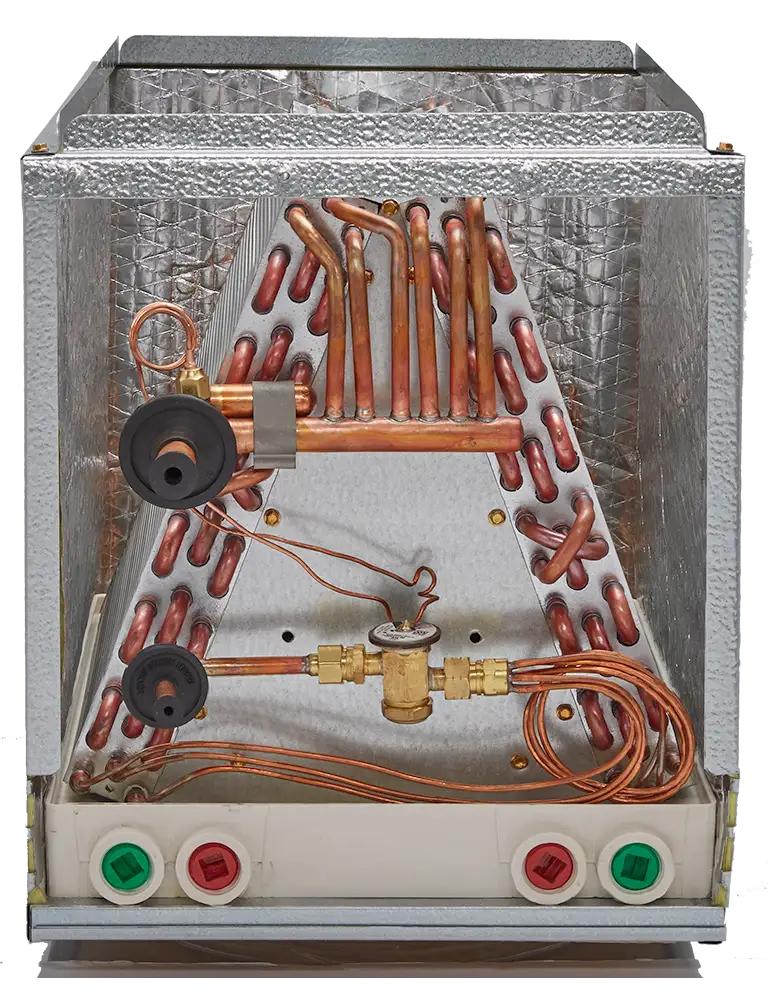

Advanced Distributor Products® CC4-5TXV-C

ADP, 70127934, Cased Evaporator Coil, Series: HE Series, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 21 in L x 21 in W x 27.5 in H Dimensions

• For use with R-410a refrigerants
• Coils are individually tested at 450 PSI, then pressurized and sealed
• Rifled Copper Tubing
• UV resistant drain pans are molded of high temperature (450 deg F) engineering polymer
• Refrigerant connections are 3/8 in ODF liquid and 3/4 in ODF (18-36 MBTUH) or 7/8 in ODF (42-60 MBTUH) suction
• Factory installed, screw-on expansion valves with threaded equalizer tube connection Available for R410a, AC or HP applications
• Florators standard
• Patented lance fin design
• 13/14 SEER
• 4 to 5 Ton

• 1151 ADP 70127934 Instruction Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1151_ADP_70127934_Instruction_Installation_Manual.pdf
• 1151 ADP 70127934 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1151_ADP_70127934_Specification_Sheet.pdf
